membraPure – Water Purification Systems – Aquinity² P10

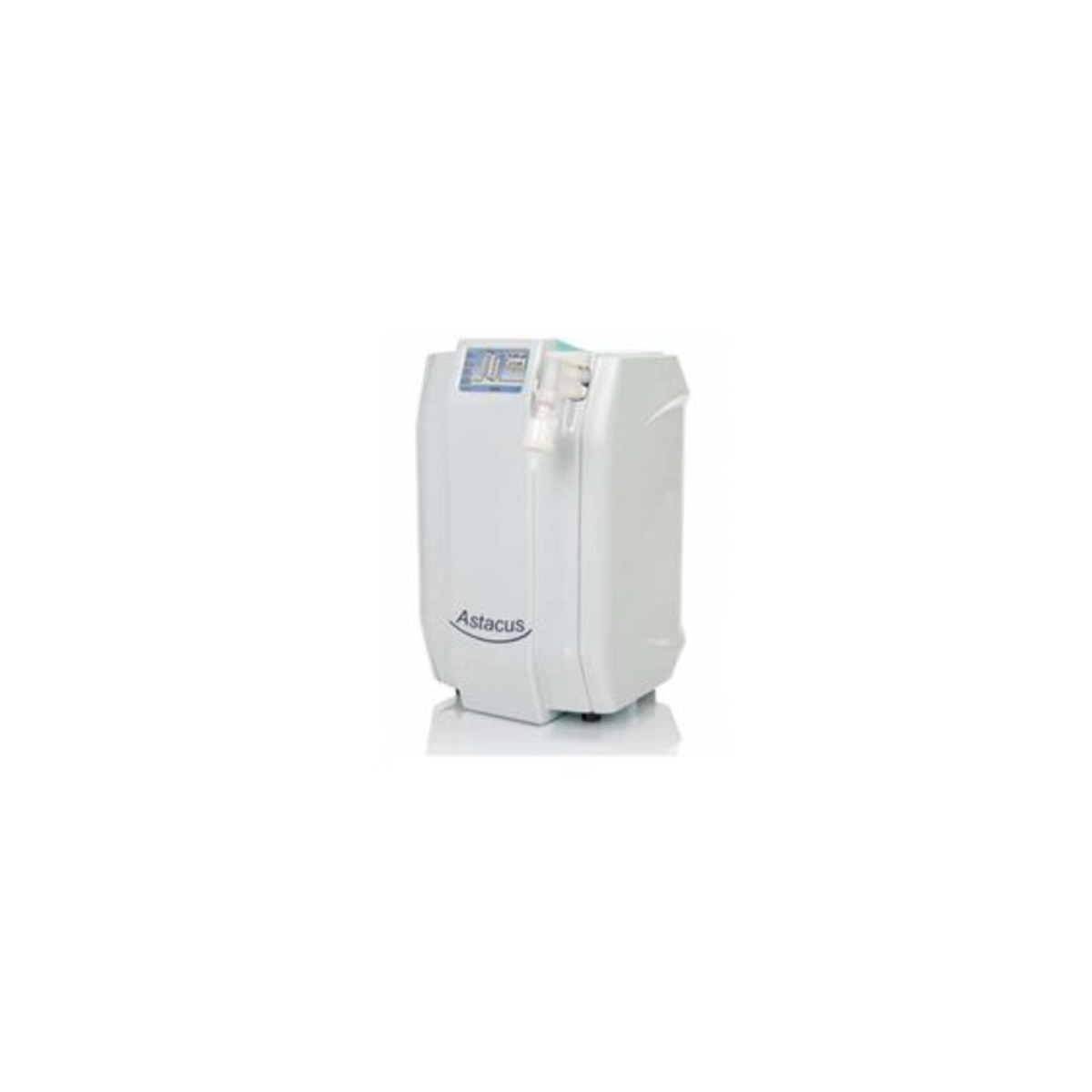

The Aquinity² P10 ultrapure water system is equipped with a reverse osmosis (RO) cell to produce deionised water directly into an integrated 10l tank.
Aquinity² models produce ultrapure water directly from municipal or potable tap water. In the next step Type I grade water is produced with a polisher cartridge.
The Aquinity² P10 model is ideal for laboratories with a limited daily need for ultrapure water.
Technical Specifications
| Permeate Rate | 8 l/h |
| Resistivity | 18.2 MOhm x cm |
|---|---|
| Reservoir | 10 l |
| Flow Rare UPW | 1.5 l/min |
| TOC | < 10 ppb (Reagent) < 3 ppb (Analytical with UV) |
Key Features
Aquinity² P10
- Compact housing
- Big touchscreen
- Remote service module
- Menus and wizards easy to use and mistake avoiding
- New fixed and flexible dispenser
- Easy access for cartridge exchange

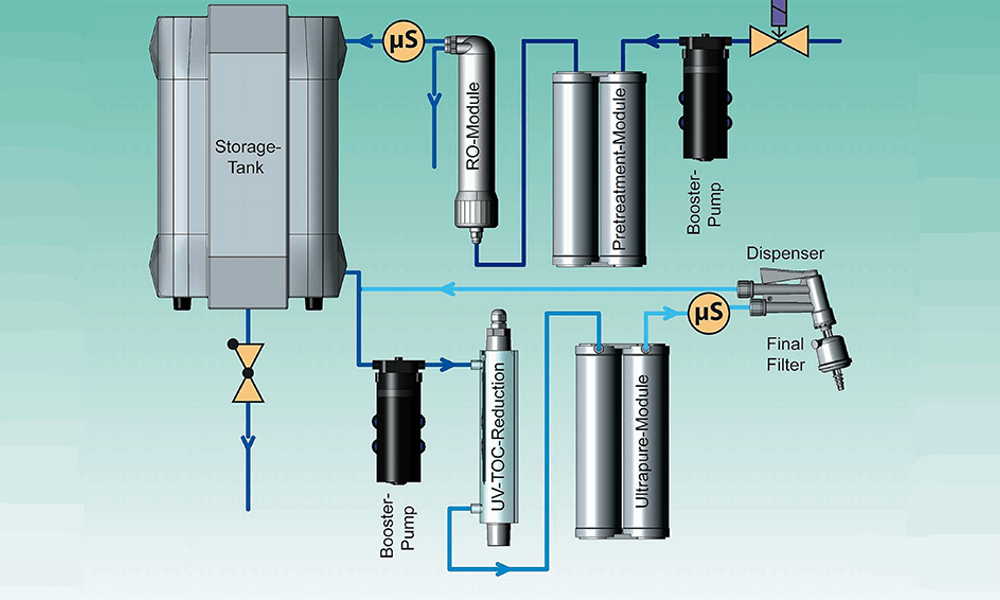

Process Flow
Technical Specifications
| Modules | Aquinity P 10 Reagent | Aquinity P 10 Analytical |
|---|---|---|
| Application: | ||
| AAS | yes | yes |
| ICP | yes | yes |
| Low Level Applications | yes | yes |
| HPLC | no | yes |
| CE | no | yes |
| ICP-MS | no | yes |
| Cell Culture | no | no |
| Gentics | no | no |
| Moduls: | ||
| UV-Reactor | no | yes |
| Ultrafiltration (UF) | no | no |
| TOC-Display | no | no |
| Ultra pure water cartridge | 190-0088 | 190-0088 |
| Filter Sterile | 190-0013 | 190-0013 |
| Installation-Kit | N/A | N/A |
| Dimensions (WxDxH) (mm) | 504 x 340 x 535 | 504 x 340 x 535 |
| Net weight | 20kg | 20kg |
Key Industries
- Agriculture
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Education & Academics
- Energy
- Environmental
- Food & Beverage
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
