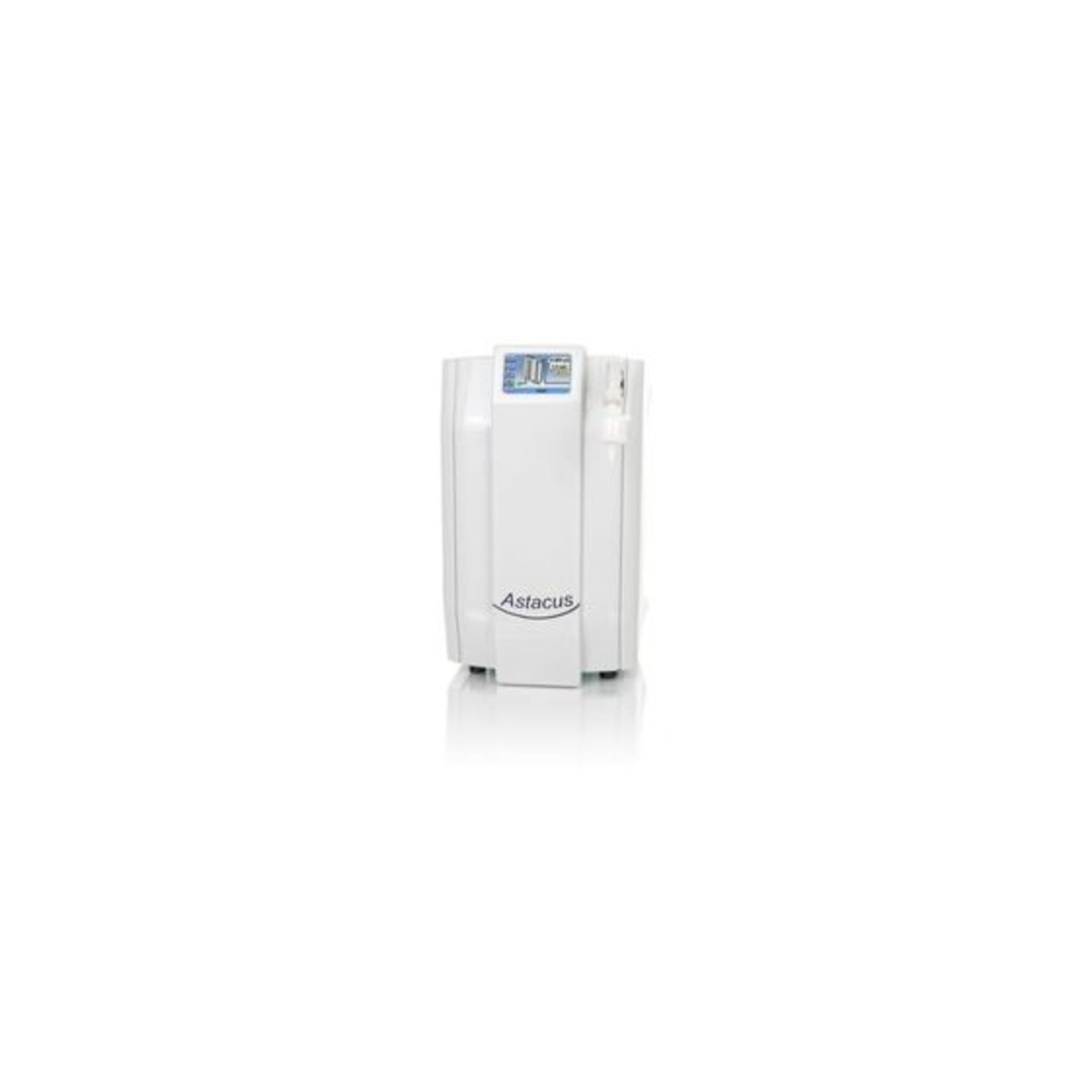

membraPure – Water Purification Systems – Astacus²
To produce ultra pure water Astacus² systems are fed with deionized water.
Astacus² models are designed for a daily consumption of less than 100 l and are equipped with a MemPak purification cartridge. The Astacus² water purification system is available in different versions (Reagent, Analytical & LifeScience) to meet the specific requirements of ultra pure water for different applications. The systems also have the new fixed and flexible dispenser and a big touchscreen with easy to use menus and wizards.
Upgrade for Trace Analysis
To detect traces of substances in analytics, the water quality has to be of highest purity. Therefore all components are made of unfi lled material. Tubing material is PTFE for minimal adhesion. Dead spaces are avoided and the recirculation pump is made of PEEK and stainless steel. The material of the tap valve is PVDF.
TOC-Monitoring
The TOC monitoring during production and intermittent measurements during non-use periods allows to check the organics in water continuously. The TOC value is measured between 1 and 30 ppb and can be shown in the display to monitor organic impurities.
memTap
Our new automatic memTap allows the volumetric controlled tapping of water with a dispenser arm. The arm can be moved horizontally and vertically. Preset of tap-volume is in 0.1 l steps. This system prevents overfl ow of containers and allows to tap water without supervising. The 3,5“ display with touch screen offers you all relevant data at a glance.
μS-Control
The μS-Control checks the conductivity of feed water to protect the cartridges against feed water of poor quality. If conductivity of the feed water is too high this water will be rejected and cannot influence the quality of the ultrapure water or harm the cartridge.
Technical Specifications
| Resistivity | 18.2 MOhm x cm |
| Flow Rare UPW | 2 l/min |
|---|---|
| TOC | < 10 ppb (Reagent) < 3 ppb (Analytical with UV) < 5 ppb (LifeScience with UV and UF) |
| Endotoxins | < 0.001 EU/ml endotoxins (LifeScience) |
Key Features
Astacus²
- Compact housing
- Big touchscreen
- Remote service module
- Menus and wizards easy to use and mistake avoiding
- New fixed and flexible dispenser
- Easy access for cartridge exchange
| Module | Reagent | Analytical | Analytical TI | Lifescience | Lifescience TI |
|---|---|---|---|---|---|
| Application: | |||||
| AAS | yes | yes | yes | yes | yes |
| ICP | yes | yes | yes | yes | yes |
| Low Level Applications | yes | yes | yes | yes | yes |
| HPLC | no | yes | yes | yes | yes |
| CE | no | yes | yes | yes | yes |
| ICP-MS | no | yes | yes | yes | yes |
| Cell Culture | no | no | no | yes | yes |
| Gentics | no | no | no | yes | yes |
| Modules: | |||||
| UV-Reactor | no | yes | yes | yes | yes |
| Ultrafiltration (UF) | no | no | no | yes | yes |
| TOC-Display | no | no | yes | no | yes |
| Dimensions (WxDxH) (mm) | 297 x 340 x 535 | 297 x 340 x 535 | 297 x 340 x 535 | 297 x 340 x 535 | 297 x 340 x 535 |
| Net weight | 15kg | 17kg | 17kg | 18kg | 18kg |
MembraPure Astacus² Water Purification System
The system Astacus² is designed for the production of ultra pure water out of permeate from a reverse osmosis or deionized water.
Key Industries
- Agriculture
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Education & Academics
- Energy
- Environmental
- Food & Beverage
- Machinery & Manufacturing
- Mining & Minerals
- Oil & Gas
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
